The Pile Integrity Test (PIT) stands out as a crucial tool in geotechnical engineering for evaluating the quality and integrity of piles. In this article, we will address the importance of the PIT test and the different contracting options available.

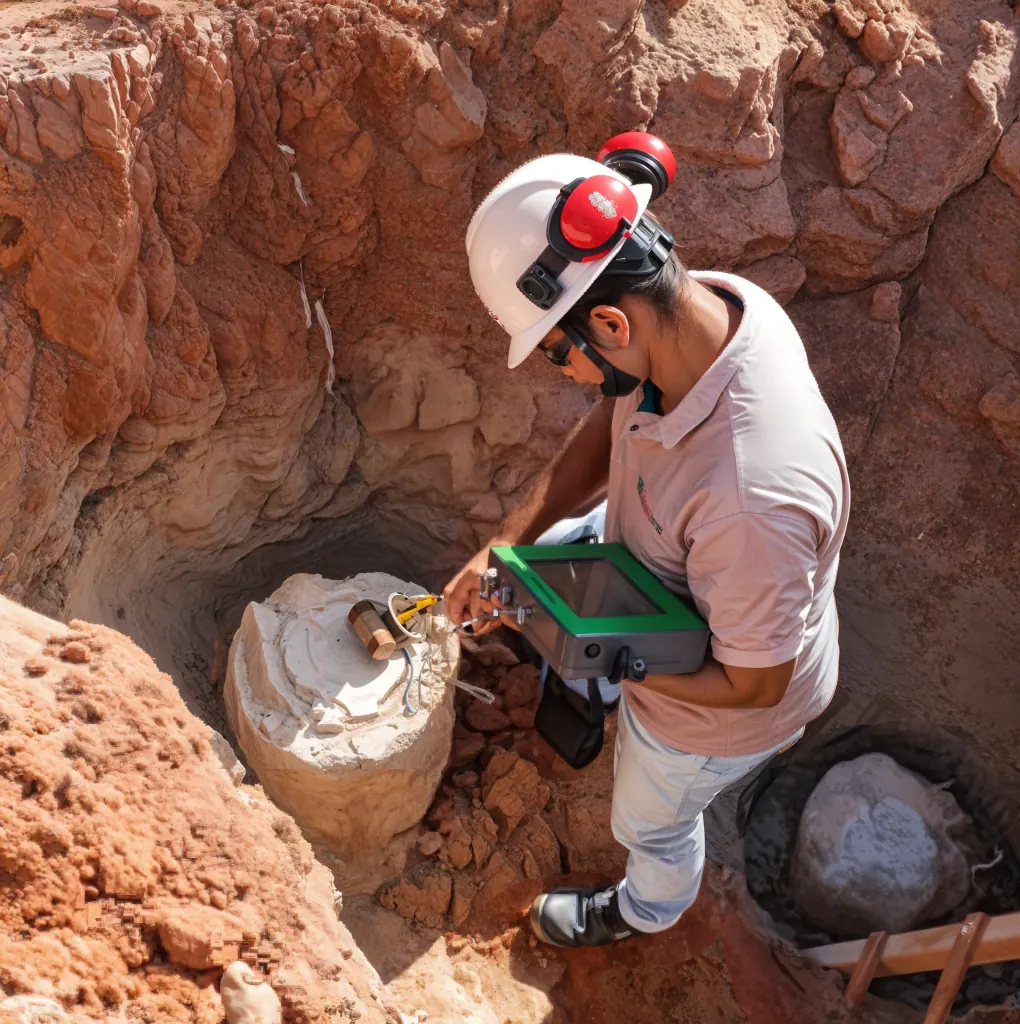

Figure 1, Performing PIT tests on Strauss piles
The PIT test is recommended in various circumstances, covering:
Quality control
To ensure the integrity of newly constructed piles, guaranteeing that they meet the established project requirements. In this case, the decision to perform this test is made during the project conception, to ensure that the piles built on site comply with the expected design depth.
Anomaly investigation
To detect defects such as sections, necking, voids, or breaks along the pile shaft. In this situation, the test might not have been included in the initial scope, but during the course of the construction, incidents may have occurred that necessitate an investigation into the piles' integrity. These incidents can range from construction errors during pile installation to unforeseen ground conditions.

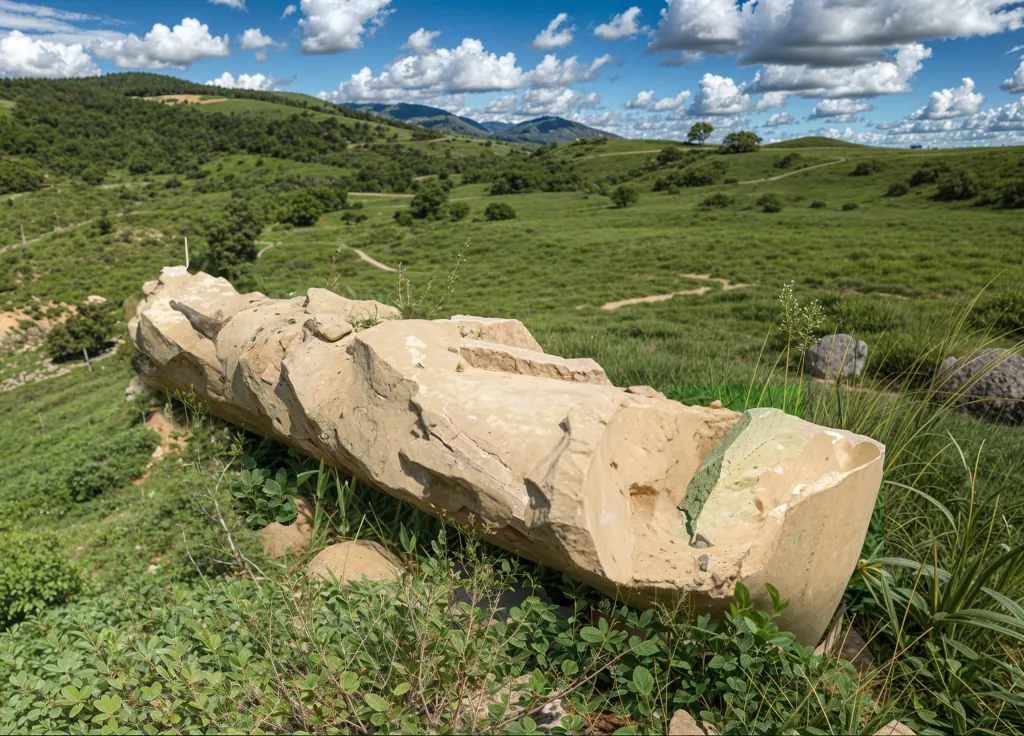

Figure 2, Pile where damage was indicated and, after the report, was removed for verification
Evaluation of existing piles
In foundation reinforcement or rehabilitation projects, the test is vital for evaluating the condition of existing piles. In forensic investigations, it is used to identify the causes of foundation failures. These tests are typically performed for constructions that were halted and intend to resume with assurance regarding the partially completed structure, or in ventures where there is no record or documentation of the foundations and/or retaining structures from the time of construction.

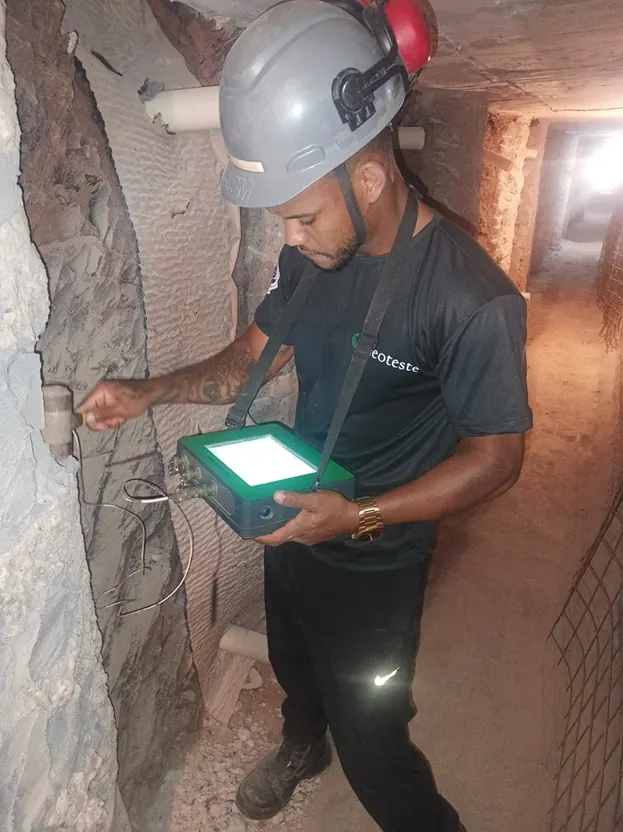

Figure 3, Performing PIT tests on already constructed retaining piles
PIT Test Contracting Options
The contracting of PIT tests can vary according to project needs and the specialized companies available. The most frequent options include:
Daily rate
For projects with a smaller number of piles (up to 30 piles), contracting on a daily rate is usually performed. In these cases, it is arranged with the client to prepare all piles on site so that all tests can be conducted in a single mobilization.
Unit price
In cases of projects with a larger number of piles to be tested, or where multiple mobilizations are necessary, contracting can be done based on a unit price model. In these cases, a value is charged per tested pile.
Contracting Geoteste Geotechnical Tests is an advantageous choice, as it offers a complete solution for your geotechnical needs. By contracting our services, you ensure not only the performance of PIT integrity tests, but also a comprehensive package that includes:
- PDA dynamic and PCE static load tests: Essential for evaluating the load capacity and behavior of foundations.
- Static plate load tests: Important for determining the soil's bearing capacity.
- Specialized consulting: Our team of experienced professionals is ready to offer complete technical support, from project development to the delivery of detailed reports.
This integrated approach is ideal for projects that demand a variety of geotechnical services, providing practicality, efficiency, and safety.
Important Considerations
When contracting the PIT test, it is essential to consider the following aspects:
Company experience and qualification
Verify the experience and qualification of the specialized company in geotechnical testing. It is fundamental to ensure that the company possesses adequate equipment with certificates and qualified personnel to perform the PIT test accurately and reliably. Reports and findings:
It is important to require detailed reports and findings that present the results of the PIT test clearly and concisely. Ensure that these documents are signed by qualified and experienced professionals.
Standards and regulations
Ensure that the PIT test is executed in compliance with pertinent standards and regulations. The main reference standard is the American ASTM-D5882-07, which provides guidelines for performing pile integrity tests.
Conclusion
The PIT test proves to be a valuable tool for ensuring the quality and integrity of piles. By understanding the importance of the test and the various contracting options available, engineering professionals can make informed decisions that promote the safety and durability of foundations.
